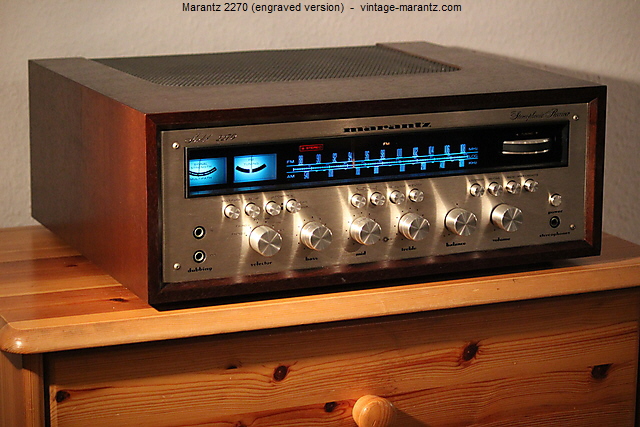

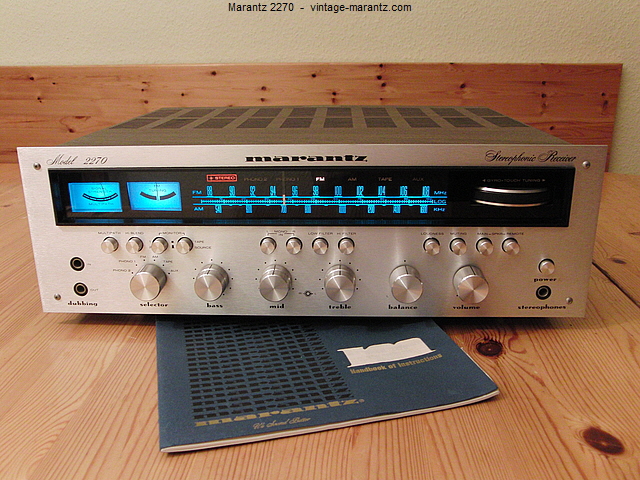

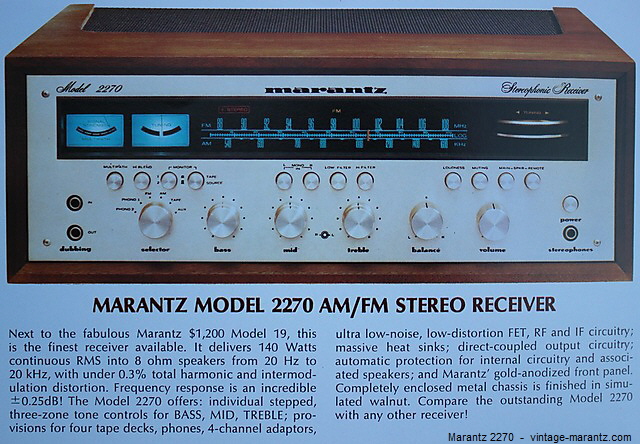

Model 2270 - 1971 bis 1975 -
Informationsquelle: Original-Handbuch / Information source: Original handbook of instruktions |
VERSTÄRKERTEIL AMPLIFIER SECTION |
Nennleistung pro Kanal (RMS) an 8 Ohm Rated Power Output (RMS) 8 Ohms |
70 Watt / Watts |
Klirrfaktor bei Nennleistung Total Harmonic Distortion |
0,30% |
Frequenzgang bei 0,3% Klirrfaktor Power Bandwidth for 0,3% THD |
7 Hz bis 50 kHz |
|
VORVERSTÄRKERTEIL PREAMPLIFIER SECTION |
Dynamikbereich (Phono) Dynamic Range (Phono) |
96 dB |
Frequenzgang (Phono) Frequency Response (Phono) |
7 Hz bis 50 kHz +/-1,0 dB |
Signal-/Rauschspannungsabstand (Phono) Signal to Noise Ratio (Phono) |
keine Angabe / unspecified |
|
UKW TUNERTEIL FM TUNER SECTION |
Empfindlichkeit (DIN) Sensitivity |
2,3 mV
|
Selektivität Selectivity |
80 dB |
Frequenzgang Frequency Response |
50 Hz - 15 kHz +/-1dB |
Gesamtklirrfaktor mono / stereo Total Harmonic Distortion mono / stereo |
0,2% |
0,4% |
Stereotrennschärfe bei 1 kHz Stereo Seperation at 1 kHz |
40 dB |
Störsignal-Unterdrückung Spurious Rejection |
keine Angabe / unspecified |
Spiegelfrequenz-Unterdrückung Image Rejection |
keine Angabe / unspecified |
Zwischenfrequenz-Unterdrückung IF Rejection |
keine Angabe / unspecified |
|
ALLGEMEINE DATEN GENERAL SPECIFICATIONS |
Leistungsaufnahme bei Nennleistung Power Consumptionat at rated output |
500 Watt / Watts |
Leistungsaufnahme im Leerlauf Idling Power |
38 Watt / Watts |
Abmessungen (B x H x T) Dimensions (W x H x D) |
440 x 137 x 350 mm 17 21/64
x 5 25/64 x 14 inches
|
Gewicht Weight |
18 kg 38,5 lbs. |
Geeignetes Woodcase Matching Woodcase |
WC-22 |
Alle Angaben ohne Gewähr / All information without guarantee |
