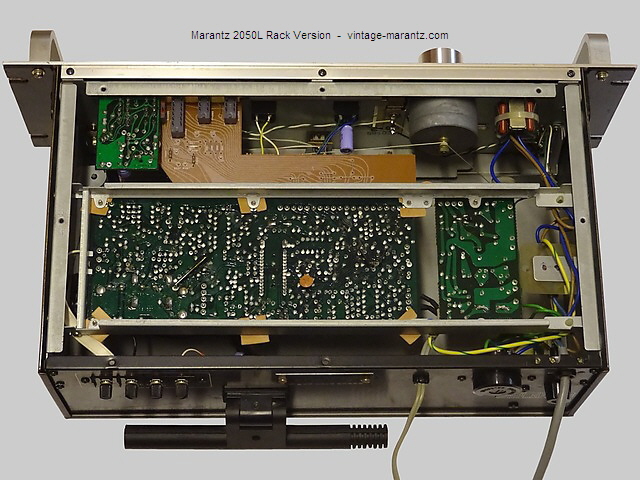

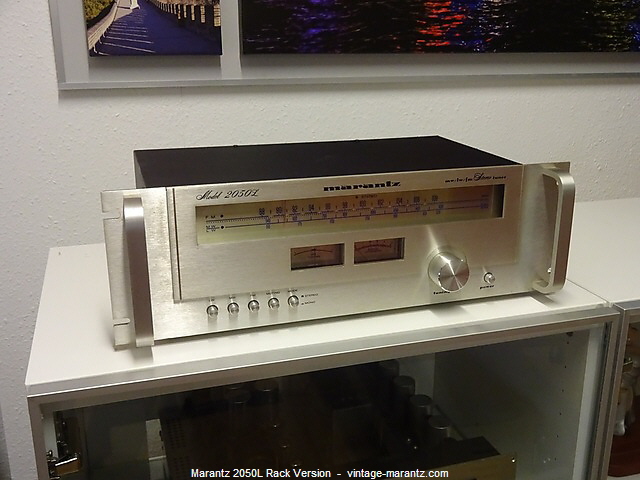

Model 2050L Rack Version - 1979 bis 1980 -
Informationsquelle: Marantz Prospekt von 1980 / Information source: Marantz sales brochure 1980 |
UKW TUNERTEIL FM TUNER SECTION |
Empfindlichkeit 40 kHz Hub, 98 MHz mono / stereo Sensitivity mono / stereo |
1,7 mV
|
50 microV |
Selektivität Selectivity |
65 dB |
Frequenzgang 30 Hz - 15 kHz Frequency Response 30 Hz - 15 kHz |
+0,2dB, -2,0dB |
Gesamtklirrfaktor mono / stereo Total Harmonic Distortion mono / stereo |
0,2% |
0,4% |
Stereotrennschärfe stereo Stereo Seperation |
42 dB |
Fremdspannungsabstand mono / stereo Signal to Noise Ratio mono / stereo |
60 dB |
55 dB |
Spiegelfrequenz-Unterdrückung 1 MHz Image Rejection 1 MHz |
55 dB |
Zwischenfrequenz-Unterdrückung IF Rejection |
Keine Angabe / Not specified |
|
|
ALLGEMEINE DATEN GENERAL SPECIFICATIONS |
Leistungsaufnahme im Leerlauf Power Consumption |
Keine Angabe / Not specified |
Abmessungen (B x H x T) normale Version Dimensions (W x H x D) normal version |
416 x 146 x 240 mm 16 3/8 x 5 3/4 x
9 3/4 inches |
Gewicht Weight |
5,0 kg 11,6 lbs. |
Geeignetes Woodcase Matching Woodcase |
./. |
Alle Angaben ohne Gewähr / All information without guarantee |
