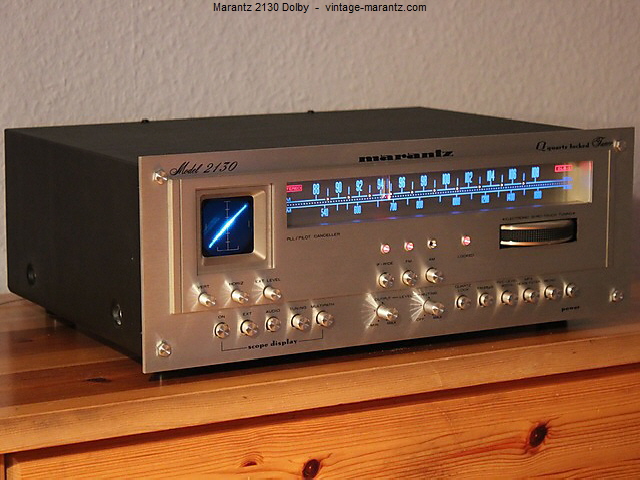

Model 2130
- 1978 bis 1980 -
Informationsquelle: Original-Handbuch / Information source: Original handbook of instructions

UKW TUNERTEIL
FM TUNER SECTION

Empfindlichkeit 40 kHz Hub, 98 MHz mono / stereo
Sensitivity mono / stereo

1,1 mV

32 mV

Selektivität narrow / wide
Selectivity narrow / wide

80 dB

50 dB

Frequenzgang 30 Hz - 15 kHz
Frequency Response 30 Hz - 15 kHz

+0,2dB, -1,0dB

Gesamtklirrfaktor mono narrow / wide
Total Harmonic Distortion mono narrow / wide

0,07%

0,05%

Gesamtklirrfaktor stereo narrow / wide
Total Harmonic Distortion stereo narrow / wide

0,15%

0,07%

Stereotrennschärfe narrow / wide
Stereo Seperation narrow / wide

50 dB

55 dB

Störsignal-Unterdrückung
Spurious Rejection

125 dB

Spiegelfrequenz-Unterdrückung
Image Rejection

125 dB

Zwischenfrequenz-Unterdrückung
IF Rejection

125 dB



ALLGEMEINE DATEN
GENERAL SPECIFICATIONS

Leistungsaufnahme im Leerlauf
Power Consumption

30 Watt / 30 Watts

Abmessungen (B x H x T)
Dimensions (W x H x D)

416 x 146 x 301 mm
16
3/8 x 5 3/4 x 11 55/64 inches

Gewicht
Weight

9,0 kg
19,8 lbs.

Geeignetes Woodcase
Matching Woodcase

WC-136 oder WC-121

Alle Angaben ohne Gewähr / All information without guarantee

.
