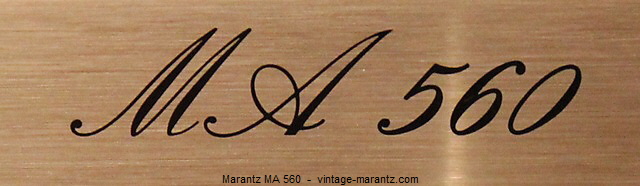

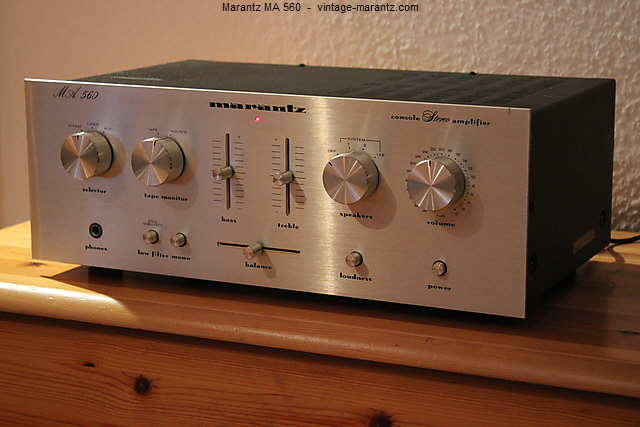

Model MA 560 - 1978 - .
Dieser Verstärker ist absolut identisch mir dem ebenfalls sehr seltenen Model 1060B. Soweit ich recherchieren konnte, wurde dieser Verstärker von Superscope nur

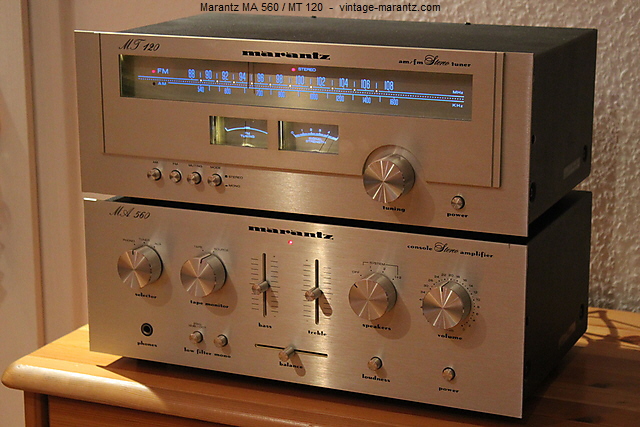

in einem Komplettpaket bestehend aus Verstärker Model MA 560, Tuner Model MT 120, sowie einem hierzu passenden Tapedeck nebst Plattenspieler und Boxen zu einem besonders günstigen Einstiegspreis angeboten. Die einzelnen
Komponenten dieses Gesamtpakets erhielten eigens neue Namen, die das einzige Unterscheidungsmerkmal zu den gleichfalls als Einzelkomponenten angebotenen Geräten darstellten. This amplifier is absolutely identical
with Model 1060B and also very rare. As far as I could find out, Superscope sold this unit only together with a complete stereo set consisting of amplifier Model MA 560, tuner Model MT 120, a matching tapedeck and
turntable together with a set of speakers at a very low price. The units in this bundle have been renamed but were nevertheless identical to the units sold with their better known names on the faceplate. |
VERSTÄRKERTEIL AMPLIFIER SECTION |
Nennleistung pro Kanal (IHF), 8 Ohm Rated Power Output per Channel (IHF), 8 Ohms |
30 Watt / Watts |
Klirrfaktor bei Nennleistung (IHF) Total Harmonic Distortion (IHF) |
0,08% |
Frequenzgang Power Bandwidth |
20 Hz - 20 kHz |
|
VORVERSTÄRKERTEIL PREAMPLIFIER SECTION |
Dynamikbereich (Phono) Dynamic Range (Phono) |
k.A. / not specified |
Frequenzgang Frequency Response |
k.A. / not specified |
Signal-/Fremdspannungsabstand Signal to Noise Ratio |
k.A. / not specified |
|
ALLGEMEINE DATEN GENERAL SPECIFICATIONS |
Leistungsaufnahme bei Nennleistung Power Consumptionat at rated output |
k.A. / not specified |
Leistungsaufnahme im Leerlauf Idling Power |
k.A. / not specified |
Abmessungen (B x H x T) Dimensions (W x H x D) |
416 x 146 x 240 mm 16 1/2 x 5 3/4 x 9 4/5 inches |
Gewicht Weight |
7,4 kg 15,4 lbs. |
Geeignetes Woodcase Matching Woodcase |
WC-160 |
Alle Angaben ohne Gewähr / All information without guarantee |
