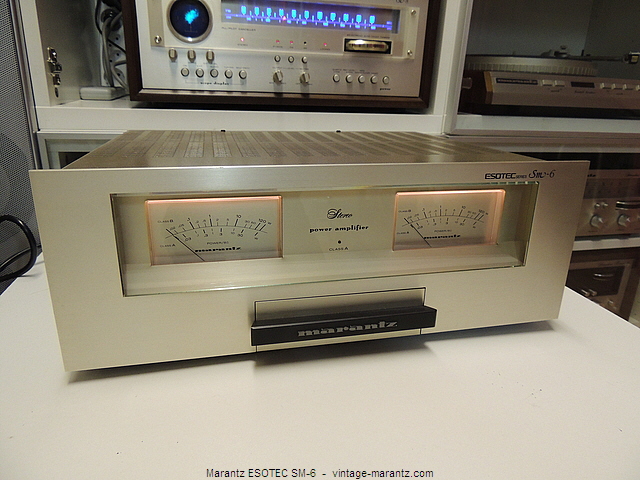

Model SM-6
Informationsquelle: / Information source: Marantz-Prospekt / Marantz brochure

Nennleistung pro Kanal, 8 ohm (RMS)
Rated Power Output per Channel, 8 ohms
(RMS)

120 Watt / Watts

Nennleistung pro Kanal Class A, 8 ohm (RMS)
Rated Power Output per Channel Class A, 8 ohms
(RMS)

30 Watt / Watts

Leistungsbandbreite
Power Bandwidth

7 Hz - 50 kHz

Frequenzgang
Frequency Response

5 Hz - 100 kHz +0/-2 dB
20 Hz - 20 kHz +0/-0,2 dB

Klirrfaktor Class A / B
Total Harmonic Distortion Class A / B

0,01% / 0,015%



ALLGEMEINE DATEN
GENERAL SPECIFICATIONS

Abmessungen (B x H x T)
Dimensions (W x H x D)

416 x 146 x 332 mm


Gewicht
Weight

14,5 kg


Leistungsaufnahme bei Nennleistung
Power Consumption at rated Power

320 Watt / Watts

Geeignetes Woodcase
Matching Woodcase

keine Angabe
not specified

Alle Angaben ohne Gewähr / All information without guarantee

.
