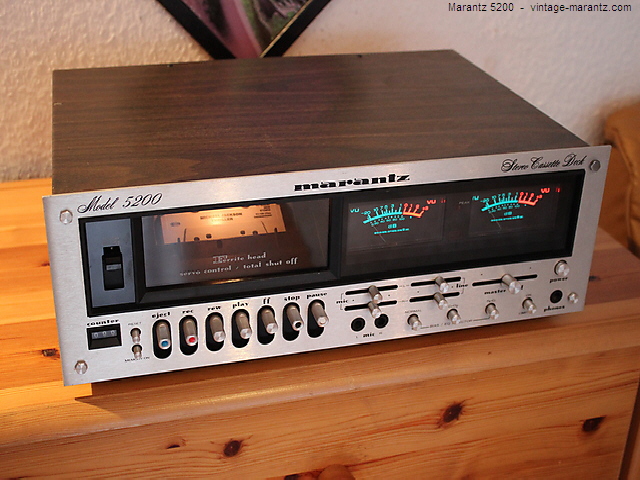

Model 5200
- 1976 - 1977 -
Informationsquelle: / Information source: Marantz-Prospekt 1977 / Marantz brochure 1977 + audioarchieves.net

Gleichlaufschwankungen
Wow and Flutter

0,08% (NAB)

Frequenzgang Normalband:
Frequncy Response Normal:

45Hz-13kHz

Frequenzgang CrO2:
Frequncy Response CrO2:

35Hz-14kHz

Frequenzgang FeCr:
Frequncy Response FeCr:

35Hz-16kHz

Frequenzgang Reineisen:
Frequncy Response Metal:

./.

Fremdspannungsabstand:
Signal to Noise Ratio:

50 dB

Abmessungen (B x H x T)
Dimensions (W x H x D)

440 x 137 x 293 mm
17
3/8 x 5 3/8 x 11 1/2 inches16 7/8 x 5 x 14 inches

Gewicht
Weight

8,7 kg
36 lbs.

Alle Angaben ohne Gewähr / All information without guarantee

.
