Marantz Model 5420 - Details

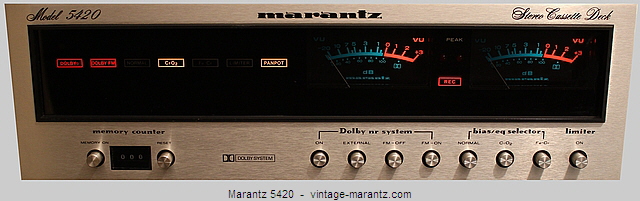

Marantz 5420  -  vintage-marantz.com

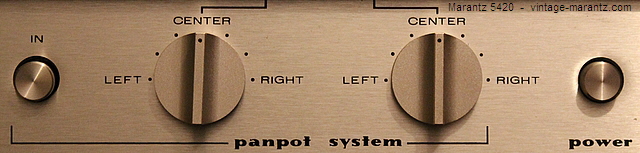

Marantz 5420  -  vintage-marantz.com

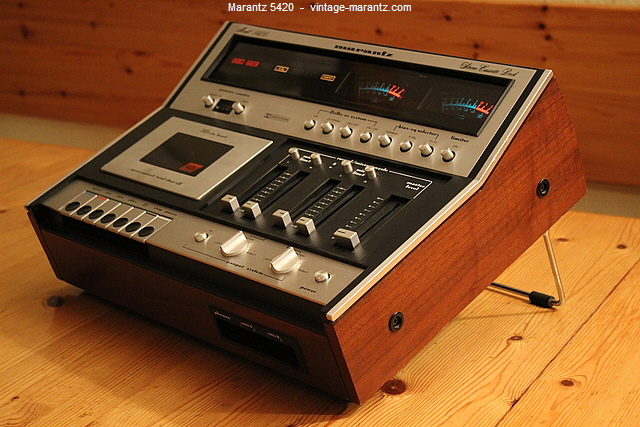

Marantz 5420  -  vintage-marantz.com

Model 5420
- 1975 - 1977 -
Informationsquelle: / Information source: Marantz Gesamtprospekt 1977 / Marantz brochure 1977

Gleichlaufschwankungen
Wow and Flutter

0,08% (NAB)

Klirrfaktor
Total Harmonic Distortion

< 2%

Frequenzgang Normalband:
Frequncy Response Normal:

45 Hz - 14 kHz

Frequenzgang CrO2:
Frequncy Response CrO2:

30 Hz - 16 kHz

Frequenzgang FeCr:
Frequncy Response FeCr:

30 Hz - 17 kHz

Frequenzgang Reineisen:
Frequncy Response Metal:

./.

Fremdspannungsabstand:
Signal to Noise Ratio:

52 dB Dolby aus/off   -    60 dB Dolby an/on

Abmessungen (B x H x T)
Dimensions (W x H x D)

440 x 152 x 320 mm
17
5/16 x 6 1/2 x 12 3/4 inches16 7/8 x 5 x 14 inches

Gewicht
Weight

9,3 kg
19,0 lbs.36 lbs.

Alle Angaben ohne Gewähr / All information without guarantee

.
